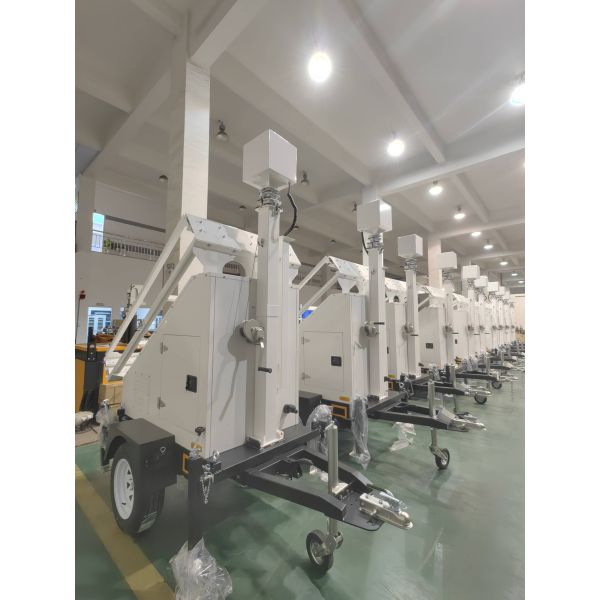

Quick Deployment Solar Powered Camera 5G CCTV Trailer for Construction Site Monitoring
Quickly details:
The solar panel is a monocrystalline silicon solar panel. The monocrystalline silicon solar panel has a conversion efficiency of 21.7% and performs more stably in low-light conditions.
The colloidal battery uses gel electrolyte and there is no liquid present inside. It has a stronger heat dissipation capacity and a longer service life.
High-definition surveillance cameras can be installed, providing high-definition monitoring images, and ensuring the stability and durability of the monitoring images.
Description:
The solar energy monitoring trailer integrates a solar power supply system, monitoring equipment, and an integrated trailer chassis. It offers a mobile independent monitoring solution that can provide continuous and reliable monitoring capabilities even in areas without stable mains power supply or in complex environments. At the same time, the monocrystalline silicon solar panels can ensure the stability of the trailer's power supply, and the gel battery can store excess electricity, enabling stable monitoring even at night. The mast height can be controlled according to requirements to ensure the comprehensiveness and continuity of the monitoring.
Applications:
Suitable for construction site monitoring, providing real-time monitoring for construction sites. Moreover, the power grid of the construction site is less developed compared to the urban area, but it can still offer high-definition monitoring.
Suitable for parking lot surveillance, it can provide continuous surveillance images for the parking lot, ensuring the safety of vehicle entry and exit in the parking lot.
Suitable for monitoring in chemical industrial parks. The power grid in chemical industrial parks is underdeveloped. Compared with diesel generator monitoring, solar monitoring trailers are safer in chemical industrial parks and can provide real-time monitoring of the safety of workers' lives and property.
| | | |
| General | | |
| System voltage | DC 24V | |
| PV Controller | MPPT 60A, 95% | | |
| IP rating | IP65 | | |
| Control | Remote control / LCD panel | | |
| Battery charging | Solar / Mains | | |
| Charging time | 7 hours | | |
| Running time | 160 hours (example: 3*15W CCTV) | | |
| Mast | | |
| Mast height | 6 meters | | |
| Mast control | Manual, customized | | |
| Mast wind resistance | Level 8 | | |
| Mast body | Steel Q235 | | |
| Mast material | Cold-Dip Galvanized Steel | | |
| Solar panel | | |
| Solar panel type | Monocrystalline silicon solar panel | | |
| Solar panel efficency | 21.7% | | |
| Solar panel wattage | 13*460W | | |
| Nominal system voltage | 24V DC | | |
| Battery | | |
| Type | AGel battery | | |
| Capacity | 4*200Ah | | |
| Quantity | U4 | | |
